MACHINERIES
Customised Automated Systems for medical device manufacturing
A UNO TEC aim is to supply simple and reliable solutions: from the idea to the finished product, including designing, prototyping, installation, and final testing. Special attention has been paid to reducing production costs and increasing productivity, while meeting the customers‿expectations.
A UNO TEC Construction Technology is based on parts moving systems that use rotary tables, linear transfer or free pallets. Machines are generally managed by PLC or industrial PC.
User interface by LCD touch screen display, allows prompt diagnosis for the causes of the machine stop, and supervision of the production data (batch quantity, actual production, cycle time, machine down-time, black box with the alarms list, etc).
For the best suitability of the machines to be used in clean-rooms, the construction materials are selected to meet the requirement of easy cleaning; the parts that come in contact with the components to be assembled are in most cases 100% stainless steel.
Pneumatic system is oil-free and the discharges are silenced. High-technology applications may require the use of anthropomorphic robots, for the movement of parts.
Either to the robotized lines as well as in the traditional automations, it is possible to integrate X-ray vision systems, for the inspection of assembled parts, which allows 100% quality control of production.
A UNO TEC also performs precision mechanical processing in-house with state-of- the-art machines.

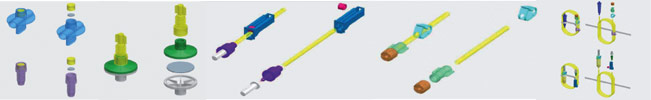

RANGE OF SOLUTIONS
Automatic components assembly machine
re.
description
nominal productivity
1a
Injection point for blood and infusion lines:
connector housing + pierceable rubber + membrane
connector housing + pierceable rubber + membrane
2400 ÷ 4800 pcs/h
1b
Dialyzer connector for blood lines:
connector housing + cap + identification ring
connector housing + cap + identification ring
2400 ÷ 4800 pcs/h
1c
Male luer-lock connector with rotating ring nut for blood lines:
male luer-lock connector housing + rotating ring nut + cap
male luer-lock connector housing + rotating ring nut + cap
2400 ÷ 4800 pcs/h
1d
Infusion line terminal:
adaptor connector + flashball connector + male luer-lock connector + cap
adaptor connector + flashball connector + male luer-lock connector + cap
2400 ÷ 4800 pcs/h
1e
Blood lines transducer protection filter (blood catcher):
upper housing + hydrophobic membrane + lower housing + snap-off connector
upper housing + hydrophobic membrane + lower housing + snap-off connector
2400 ÷ 4800 pcs/h
1f
Infusion line chamber filter:
connector housing + hydrophobic membrane
connector housing + hydrophobic membrane
1800 ÷ 3600 pcs/h
1g
Expansion chamber / drip chamber for blood lines:
chamber housing + pressed filter + cover
chamber housing + pressed filter + cover
1500 ÷ 3000 pcs/h
1h
Expansion chamber / drip chamber for blood lines:
chamber housing + pressed filter + cover
chamber housing + pressed filter + cover
1500 ÷ 3000 pcs/h
Automatic components and tubing assembly machine
re.
description
nominal productivity
2a
Subassembly for blood and infusion lines:
tube + clamp + female luer-lock connector + cap
tube + clamp + female luer-lock connector + cap
1500 ÷ 3000 pcs/h
2b
Subassembly for infusion lines:
tube + roller housing + wheel + male luer-lock connector + cap
tube + roller housing + wheel + male luer-lock connector + cap
1500 ÷ 3000 pcs/h
2c
Subassembly for blood lines: injection point + tube + clamp + male luer-lock connector with rotating ring nut + cap
1500 ÷ 3000 pcs/h
2d
Infusion line terminal:
adaptor connector + flashball connector + male luer-lock connector + cap
adaptor connector + flashball connector + male luer-lock connector + cap
1500 ÷ 3000 pcs/h
2e
Pump-chamber segment subassembly for infusion circuits:
chamber + silicone tube + connector
chamber + silicone tube + connector
1500 ÷ 3000 pcs/h
Automatic components and tubing, coiled and fastened, assembly machine
re.
description
nominal productivity
3a
Subassembly for blood and infusion lines:
tube + clamp + female luer-lock connector + cap
tube + clamp + female luer-lock connector + cap
1500 pcs/h
3b
Subassembly for infusion lines:
tube + roller housing + wheel + male luer-lock connector + cap
tube + roller housing + wheel + male luer-lock connector + cap
1800 pcs/h
3c
Subassembly for infusion lines:
tube + roller housing + wheel + connector with spike + cap
tube + roller housing + wheel + connector with spike + cap
1800 pcs/h
Customized Automatic and semi-automatic solutions
In addition to fully automatic assembly machines, A UNO TEC can support the medical device manufacturing process with either small automations and semi-automatic solutions, such as:
A UNO TEC engineering staff is available to assist customer in defining the specifications and to design and build the best solution according to specific manufacturing requirements.
In addition to fully automatic assembly machines, A UNO TEC can support the medical device manufacturing process with either small automations and semi-automatic solutions, such as:
- tube cutting
- tube / tubing set coiling
- tube /tubing set banding
- solvent bonding of tube and components assembly
- ultrasonic welding
- pressure testing
- packing
- belt conveying
A UNO TEC engineering staff is available to assist customer in defining the specifications and to design and build the best solution according to specific manufacturing requirements.
